Customize ACME 2sxc view source

ACME sample pages are designed for day-to-day editing through structured 2sxc fields. When the available fields and curated layouts are not enough, a developer can customize the Razor and CSS that render those views.

Choose content editing or source editing

• Use the native 2sxc content form to change text, images, links, labels, statistics, plans, questions, or repeated items.

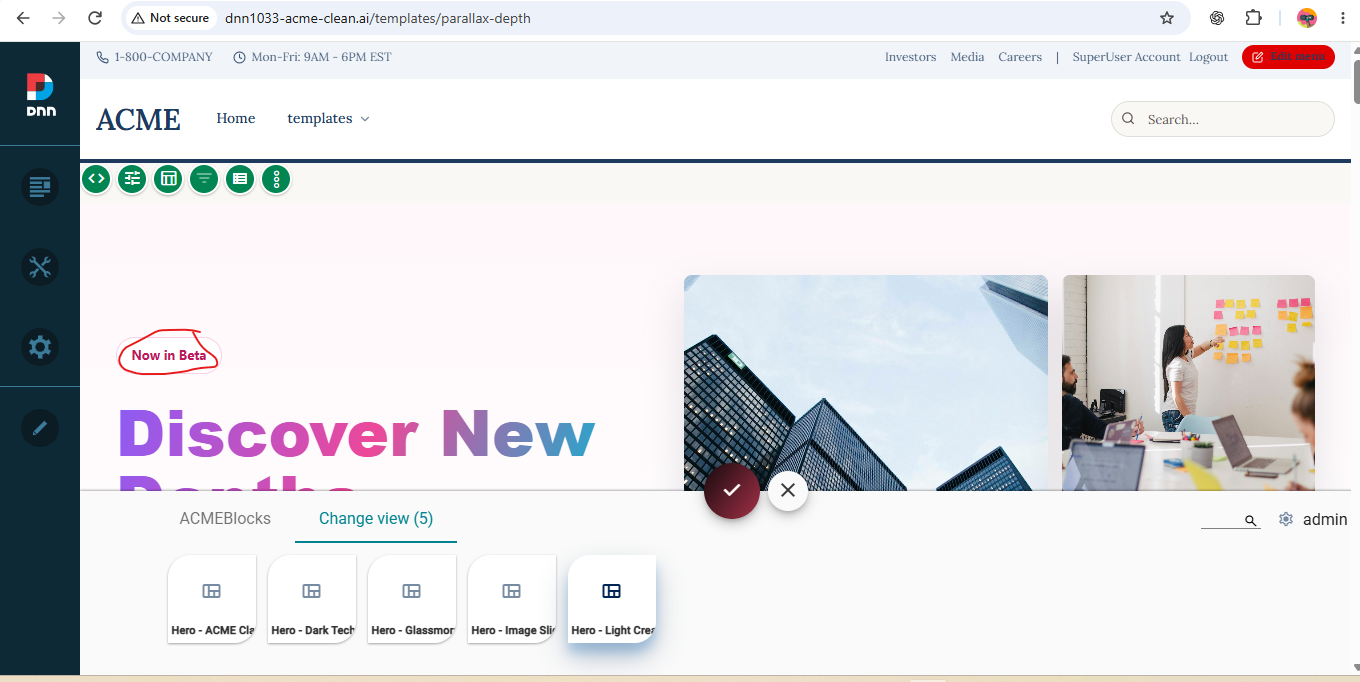

• Use Change view to switch between the supported layouts without changing code.
• Edit Razor or CSS only when you need different markup, spacing, breakpoints, behavior, or a new reusable layout.

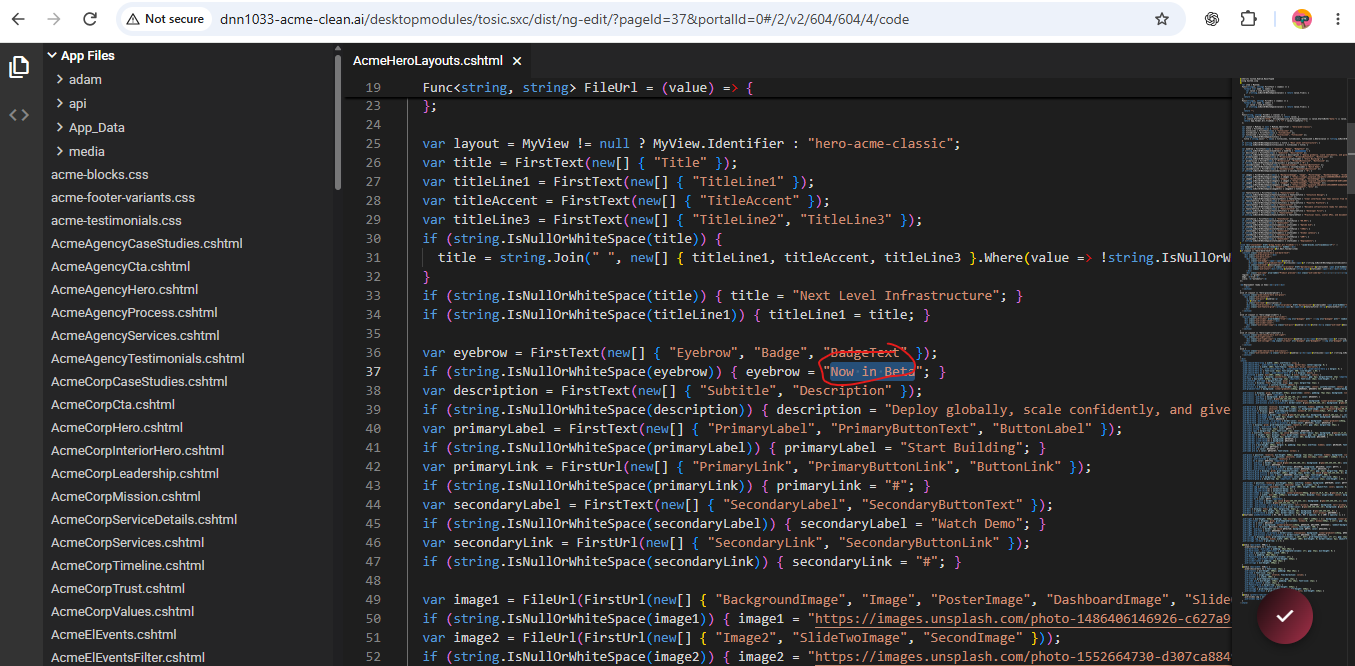

Open the 2sxc code editor

1. Open an ACME sample page while signed in as a host or an administrator with 2sxc app permissions.

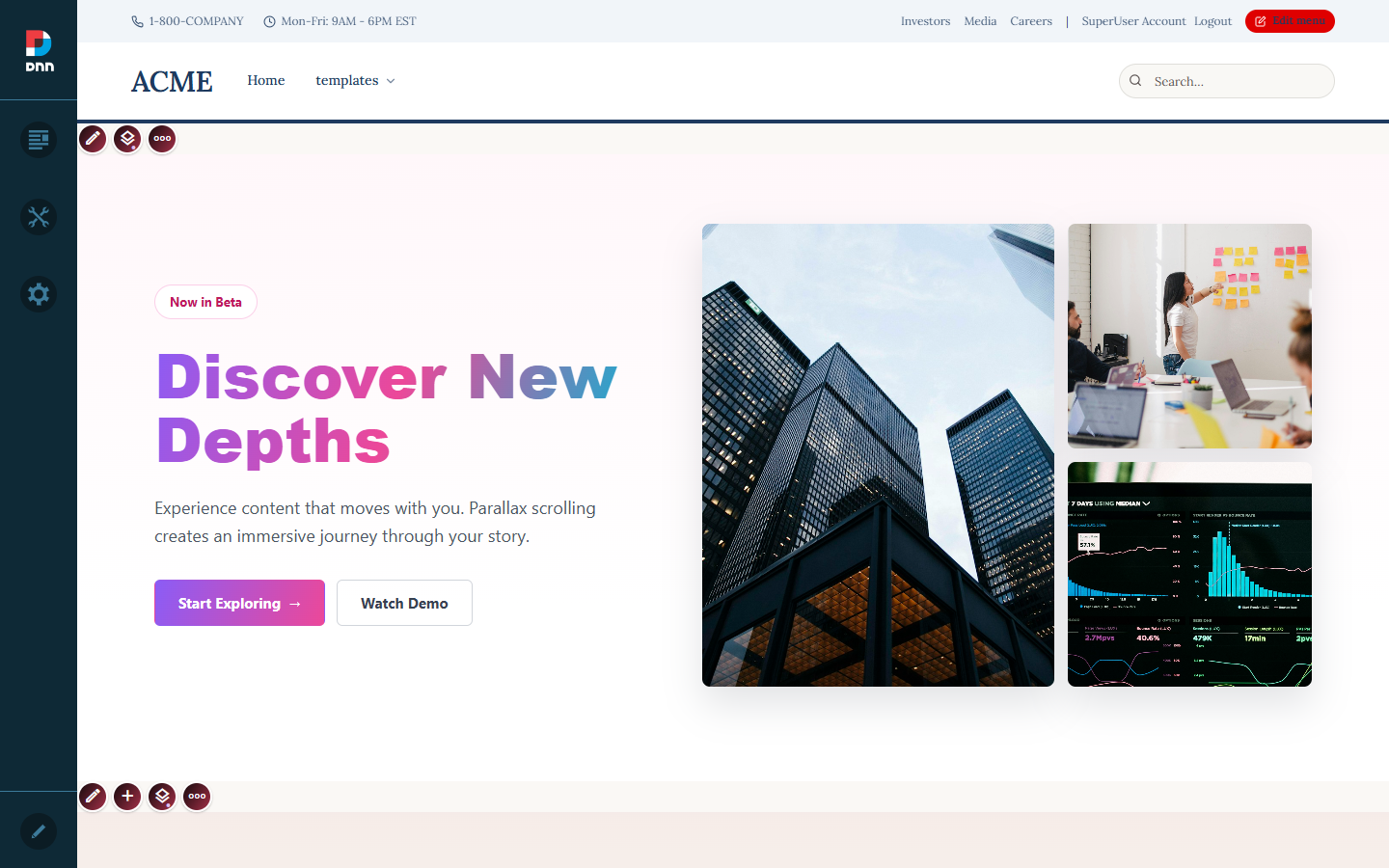

2. Turn on DNN edit mode and locate the module toolbar.
3. Open the 2sxc code action. The editor displays the App Files tree for the ACMEBlocks app.
4. Select the Razor or CSS file for the component family you are changing.

Find the correct view file

App_Data/app.xml describes the packaged app. api/SamplePagesController.cs creates content types, templates, demo data, and sample-page modules. Do not edit either file merely to adjust a color or spacing rule.

Understand the view identifier

A curated 2sxc view has a stable identifier. The shared Razor renderer reads that identifier and selects the matching branch. For example, the Hero renderer starts with:

var layout = MyView != null
  ? MyView.Identifier
  : "hero-acme-classic";

if (layout == "hero-dark-tech") {
  // Dark Tech markup
} else if (layout == "hero-glassmorphism") {
  // Glassmorphism markup
} else {
  // ACME Classic markup
}

Keep the identifier stable when changing an existing view. Changing it without updating the 2sxc view metadata causes the renderer to fall through to another layout.

Modify an existing view

1. Find the branch that matches the current view identifier.
2. Keep content semantic: continue reading values from MyItem, MyHeader, or the existing field helpers. Do not replace structured fields with a raw HTML field.
3. Change only the markup and classes required by the design.
4. Scope every CSS rule under the component root, such as .acme-choice-hero or .acme-footer. Avoid global rules for h1, section, img, or a.
5. Save the source, reload the page without cache, and verify the affected view while signed in and signed out.

/* Scoped: affects only this Hero family */
.acme-choice-hero.ach-dark-tech .ach-lead {
  color: rgba(255, 255, 255, 0.78);
  max-width: 42rem;
}

/* Avoid: leaks into the DNN skin and unrelated modules */
/* h1 { color: white; } */

Add a new reusable view

1. In the ACMEBlocks app administration, duplicate the nearest existing 2sxc view.
2. Keep the same content type and list/header mapping when the new layout uses the same fields.
3. Give the view a unique, stable identifier such as hero-editorial.
4. Point it to the shared renderer or a deliberately separate Razor file.
5. Add the matching identifier branch and component-scoped CSS.
6. Confirm that the new entry appears once in Change view and that existing entries still render correctly.

Make the change survive an upgrade

The browser editor changes the deployed app on one DNN portal. In the maintained source tree, the packaged app lives under apps/ACMEBlocks. A later skin installation or ACMEBlocks bootstrap can replace a portal-only edit.

1. Reproduce the tested change in the canonical ACMEBlocks source.
2. Update the app metadata when a new file, content type, or public view is introduced.
3. Run scripts\build-acmeblocks-package.ps1.
4. Run scripts\build-dnn-package.ps1 so the internal ACMEBlocks ZIP is embedded in the ACME Skin package.
5. Install the rebuilt skin on a clean DNN site and repeat the visual checks.

Visual QA checklist

• Test every view that shares the edited Razor or CSS file.
• Inspect the top, middle, and bottom of long pages. Scroll-triggered sections must be checked after scrolling them into view.
• Test desktop and mobile widths, including text wrapping, image crop, buttons, module toolbars, and horizontal overflow.
• Test while signed out so DNN and 2sxc edit chrome cannot hide spacing or stacking problems.
• Check the browser console, broken images, Razor error output, and cache-busted CSS.

Recover from a broken view

• Restore the backed-up Razor/CSS file or reimport the last trusted ACMEBlocks package.
• If the module is blank, check Razor syntax and confirm that the expected MyItem/MyHeader fields exist.
• If only styling is wrong, inspect computed styles for DNN skin rules and global selectors overriding the component.
• If a view disappears, verify its template path, content type, list/header mapping, identifier, and hidden/public metadata.
